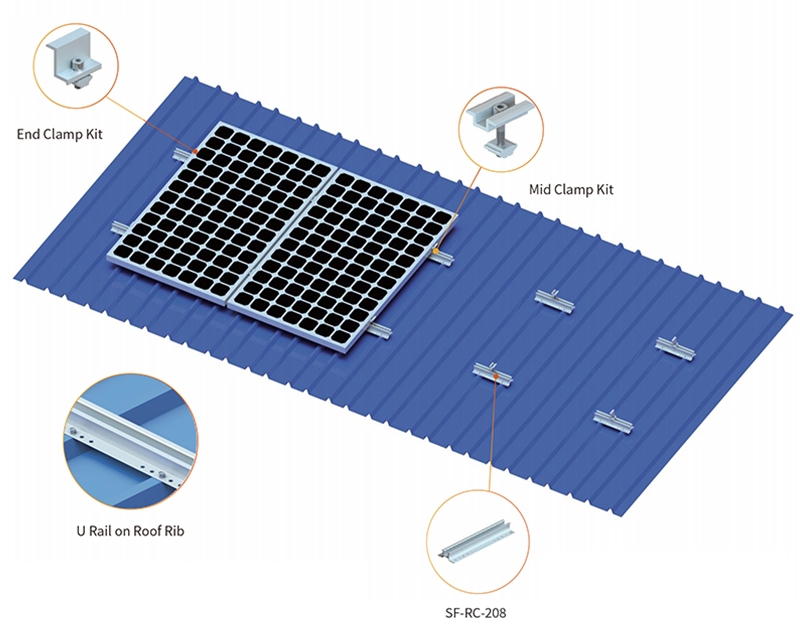

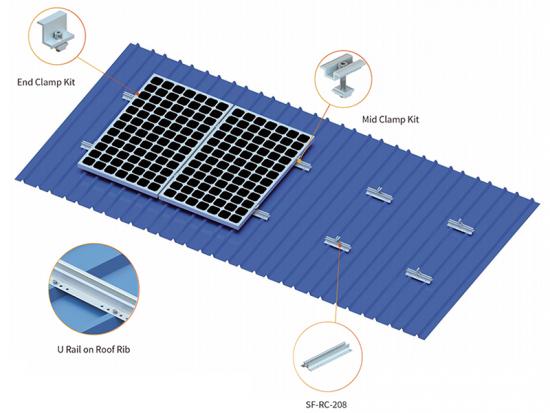

SolFirsTech METAL ROOF MOUNT - U RAIL

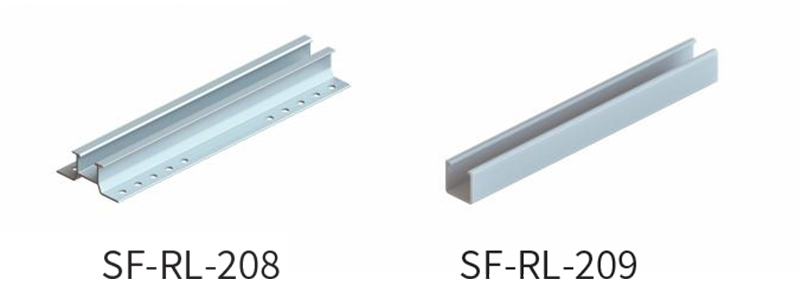

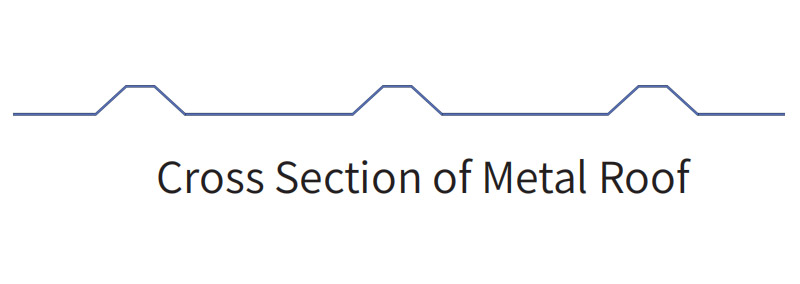

Customized High Quality U Rail for Trapezoidal Rooftop

Industrial & Commercial PV Grid-connected System

Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life   Application ·Distributed ·Roofs   ·Hotels ·Factories   ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)

SolFirsTech METAL ROOF MOUNT - TRAPEZOID ROOF CLAMPS

SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°) SolFirsTech-RC-08 28 34 122 SolFirsTech-RC-09 20 20 123 SolFirsTech-RC-10 20 20 123 SolFirsTech-RC-11 25 23.8 132 SolFirsTech-RC-18 22 16 120 SolFirsTech-RC-21 52 12 135 SolFirsTech-RC-22 33.7 18 135 SolFirsTech-RC-23 33.7 18 135 Technical Details Installation  Metal Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

SolFirsTech METAL ROOF MOUNT - ANGULAR ROOF CLAMPS

SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C D SolFirsTech-RC-01 18 13.5 10.5 10 SolFirsTech-RC-02 26 12 10.5 18 SolFirsTech-RC-03 35 21.6 2.5 31.5 SolFirsTech-RC-04 16.3 16.3 2.5 12 SolFirsTech-RC-05 15 12.2 10 10   Technical Details Installation  Metal Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

SolFirsTech CONCRETE ROOF - FIXED TRIANGLE

Technical Details Design Description: This solution is applicable on ground or concrete roof with small inclination. Light structure, strong strength, good flexibility. Installation  Ground / Concrete Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  0~60° Standards  AGB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

Portable PV System

Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking   Application Outdoor DC power supply places   System Parameters

Solar Garden Light

Characteristics ·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving ·Adopt intelligent power regulation technology ·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving ·The detachable light pole is easy to install and transport   Application ·Garden ·Plaza ·Residential area   System Parameters Solar panel power 48W±15% Battery Type Lead-acid batteries Battery capacity I12V/80Ah Total power of light source 21W Main light color temperature 3000K 〜6000K Applicable temperature range 20°C 〜55°C Height of the whole lamp 4. 3m Windproof strength 27m/s (Wind grade 10) Rainy days 5~7 Days

Grounding Accessories

Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04         SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08     SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12

Stainless Steel Solar Tile Roof Hook

Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.

BIPV Roof

SolFirsTechPVROOF is a series of BIPV roofs which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Day lighting + solar photovoltaic, an eco-friendly substitution to the traditional skylight.

Horizon D+ Series Solar Tracking Systems

Horizontal Single Axis Traker

Smart Street Light

Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock   Application ·High-tech park       ·Tourist scenic area       ·Park plaza       ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc
