Item NO.:
SF-SL-20WPayment:
L/C, T/T, D/P, Western Union, PaypalPrice Range:
300 - 800/$1Product Origin:
ChinaColor:
NormalShipping Port:
Xiamen,ChinaLead Time:
20-30 working daysAll in One Waterproof 20W Solar Street LED Light
Product Description
SolFirsTech Integrated solar street light has lower consumption, high-brightness, long service time, maintenance-free, and good water-proof and heat radiation performance. In addition, it is not the same with the ordinary solar street light that should install the light and solar panel separately, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.

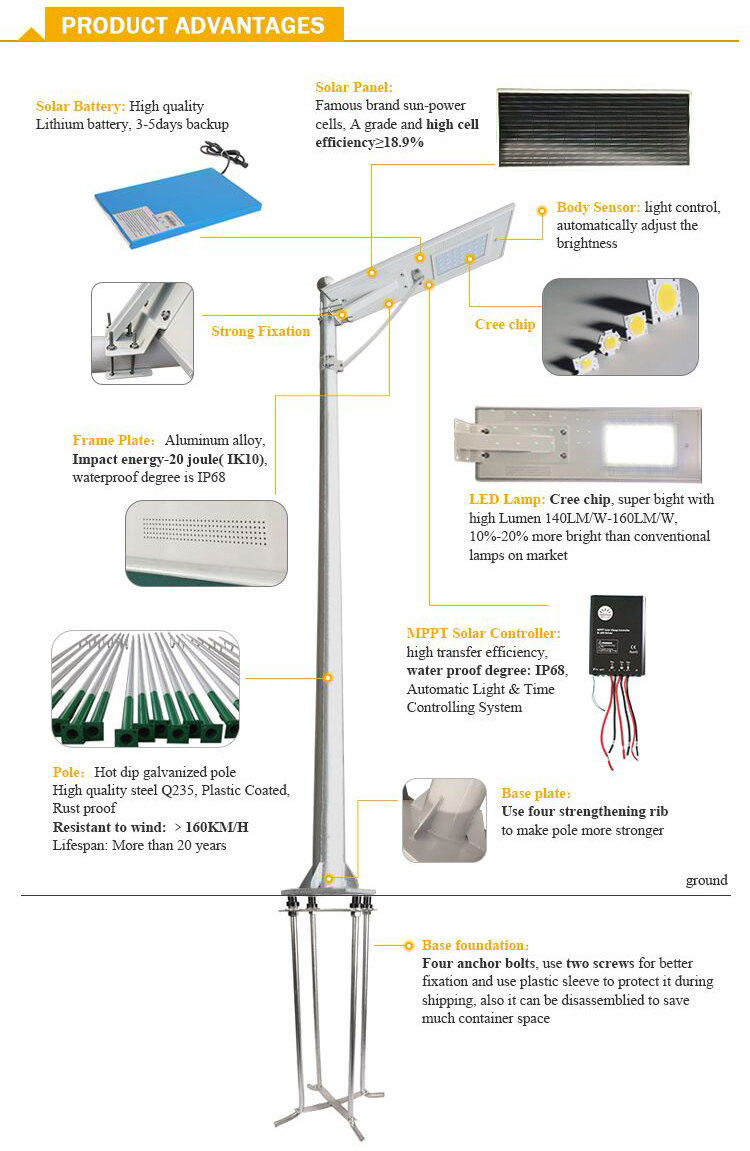

Advantages
1.All-in-one design simple but practical.
2.High quality die-casting aluminum structure.
3.Surface anti-aging electrostatic painting strong corrosion resistance.
4.Independent convection heat dissipation, reduce the thermal resistance, improve radiation efficiency.
5.Adjustable installation angle.

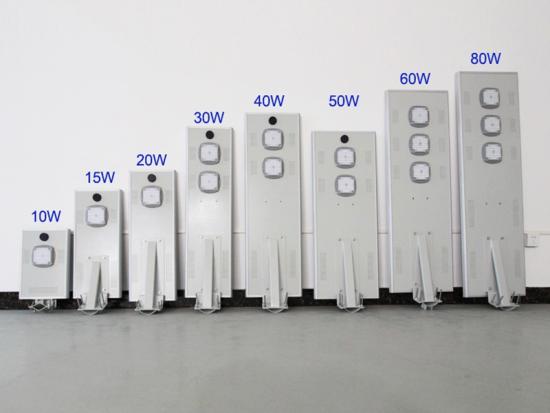

| Model | SolFirsTech-10W | SolFirsTech-15W | SolFirsTech-20W | SolFirsTech-30W | SolFirsTech-40W | SolFirsTech-50W | SolFirsTech-60W | SolFirsTech-80W |
| Input Voltage | 12V AC | |||||||
| Power | 10W | 15W | 20W | 30W | 40W | 50W | 60W | 80W |
| Luminous Flux | 1000-1100 | 1500-1650 | 2000-2200 | 3000-3300 | 4000-4400 | 5000-5500 | 6000-6600 | 8000-8800 |
| size(mm) | 438*300*43 | 688*300*43 | 828*300*43 | 1078*300*43 | 1172*343*43 | 1078*426*43 | 1306*426*43 |
1470*426*43 |
| Lamp pole height | 3~4m | 3~4m | 3~5m | 4~6m | 4~8m | 5~8m | 6~8m | 8~10m |
| Solar Module | 17W | 26W | 35W | 45W | 60W | 70W | 90W | 95W |
| Solar panel life | 25 years | |||||||
| Lithium battery | 12V 8.8AH | 12V 15.4AH | 12V 20AH | 12V 24.2AH | 12V 33AH | 12V 38AH | 24V 50AH | 24V 60AH |
|
Operation mode |
1.It has five periods of light adjustment and morning light design, working time is 0 to 15 hours, power 0% to100% can be set. 2.It has microwave human induction, time delay human induction function. Dimming function, output different power at each time period. The output power of the battery can be adjusted intelligently according to the capacity of the battery. |
|||||||
Product Details

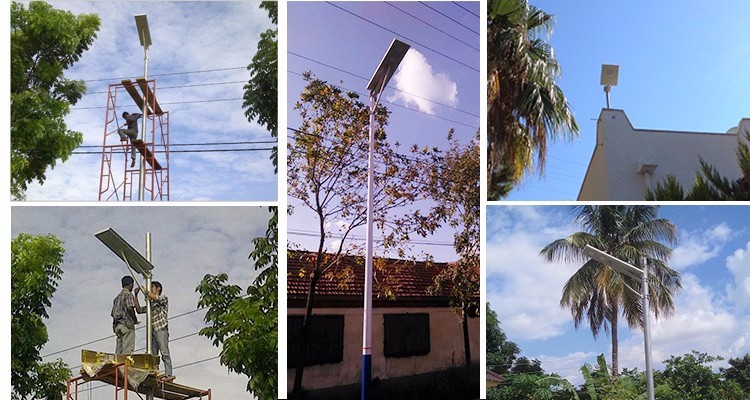

Applications
Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.
Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.
Wind and Solar two charging mode Solar Street Light

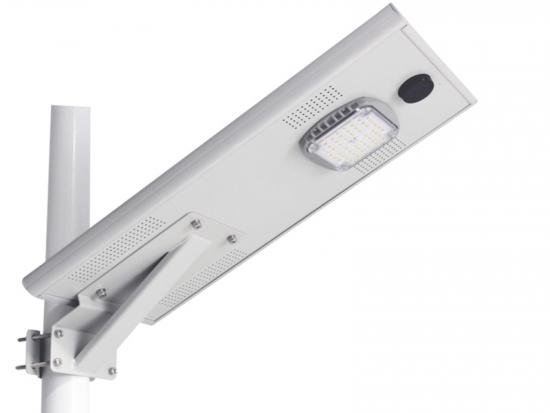

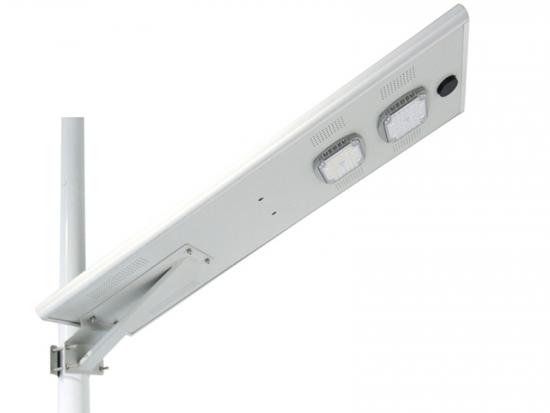

All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.
LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤20m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤30° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
SolFirsTech aluminum solar carport is made of high-strength aluminum alloy to meet customer's demand for safety installation, efficiency and aesthetics. To maximize the use of space, the carport bracket utilizes a special structural design, which allows to park two or four cars in each unit.
