Characteristics
· Efficient power conversion, plug and play, no need to wait
· Intelligent circuit, stabilized output power at 5V, matching stable output current,
avoiding damage to the charging equipment
· Strong, waterproof, corrosion-resistant ETFE material, longer service life

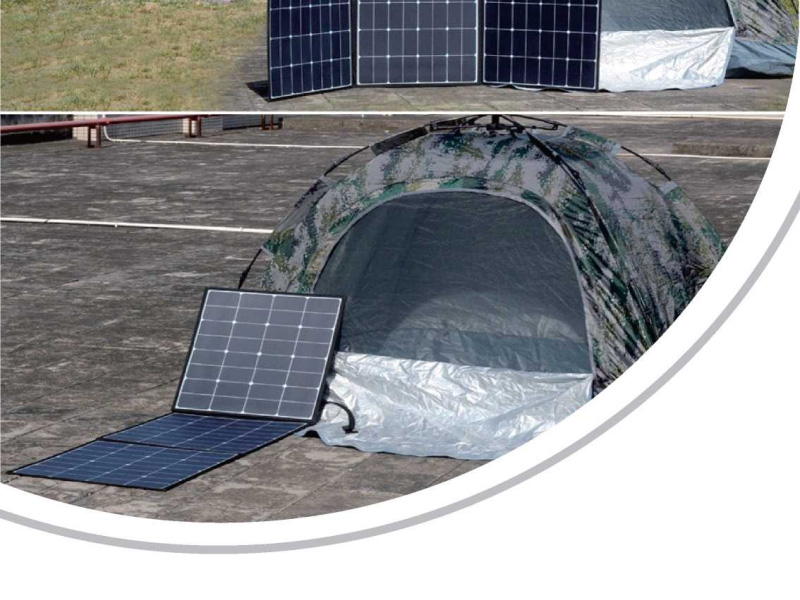

· For camping/hiking
Application
Outdoor DC power supply places

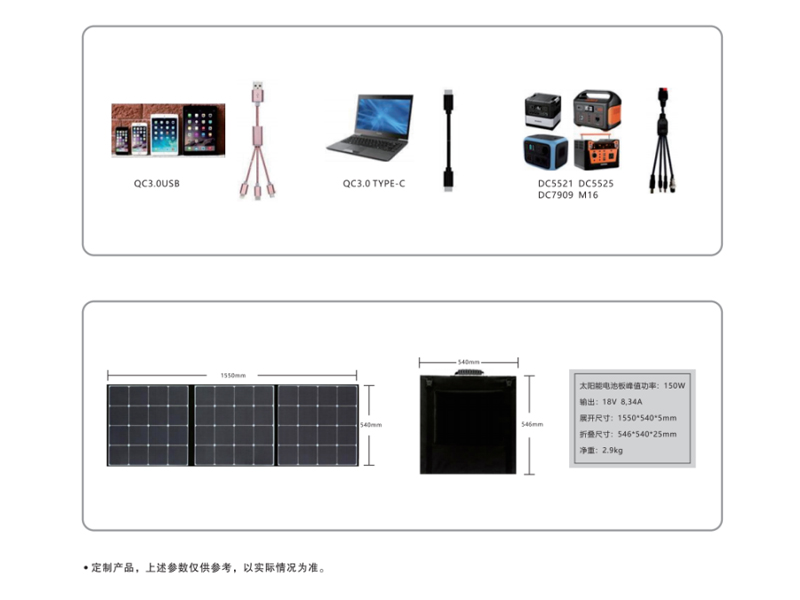

System Parameters
Characteristics · Dual CPU intelligent control technology, with pure sine wave AC output, adapted to various types of loads. · Uility power mode (mains mode) lenergy saving mode/battery mode can be set. Flexible application · 5VDC-USB output, convenient and practical · Easy to carry Application ·Expeditions ·Outdoor camping ·Night Market lighting ·Home lighting ·Poverty areas System Parameters System power 0. 3KW 0.5KW 1KW Solar panel power 180W 250W 360W Number of solar panels 2片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Controller 12V30A 24V20A 24V30A Lithium battery/Lead-acid battery(Gel) 12V 24V Battery capacity 60Ah 120Ah DC output 5V2A USB Output ×2 Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65HZ Inverter off-grid rated output power 0. 3KW 0.5KW 1KW Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0~+40°C Cooling method Air-cooled AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting(one set)
SolFirsTechPVROOF is a series of aluminum waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic， an eco- friendly substitution to the traditional canopy.
Characteristics ·Integrated, simple installation and maintenance, low operating cost, high efficiency and safety, economical and practical ·Pumping water from deep well for farmland irrigation or drinking, effectively solving the problem of water supply in areas lacking water and electricity ·Photovoltaic power generation has no noise, no other public hazards, energy saving, environmental friendly and a wide range of applications Application ·Water shortage and power shortage areas ·Pumped for deep water Solar AC Pumping System Specifications Solar panel power 1800W 2400W 3400W 4500W 6000W 8500W 13500W 22500W 31550W 40800W Solar panel voltage 210-450V 350-800V Rated power of water pump 1100W 1500W 2200W 3000W 4000W 5500W 9000 W 15000W 22000W 30000W Rated voltage of water pump AC220V AC380V Maximum lift of water pump 120m 110m 235m 120m 105m 220m 100m 160m 210m 245m Maximum flow of water pump 3.83/h 5m3/h 10m3/h 18m3/h 10m3/h 53m3/h 75m3/h Outer diameter of water pump 3 inch 4inch 6inch Pump outlet diameter 1 inch 1.25inch 1.5inch 2 inch 1.5inch 3 inch Water pump material Stainless steel Pump conveying medium Water Photovoltaic mounting type Ground mounting
Types of PHC Piles Technical Details Design Description: 1. Applicable to water pools, marshes, wetlands or deep mud areas. 2. Particularly suitable for flood-prone areas. Installation Ground Foundation Concrete Spun Pile / High Concrete Pile (H≥600mm) Wind Load up to 60m/s Snow Load 1.4kn/m2 Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 Material Anodized AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
Steel Solar Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°） SolFirsTech-RC-15 76 21(R) 112 SolFirsTech-RC-16 76 21(R) 112 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
