Characteristics

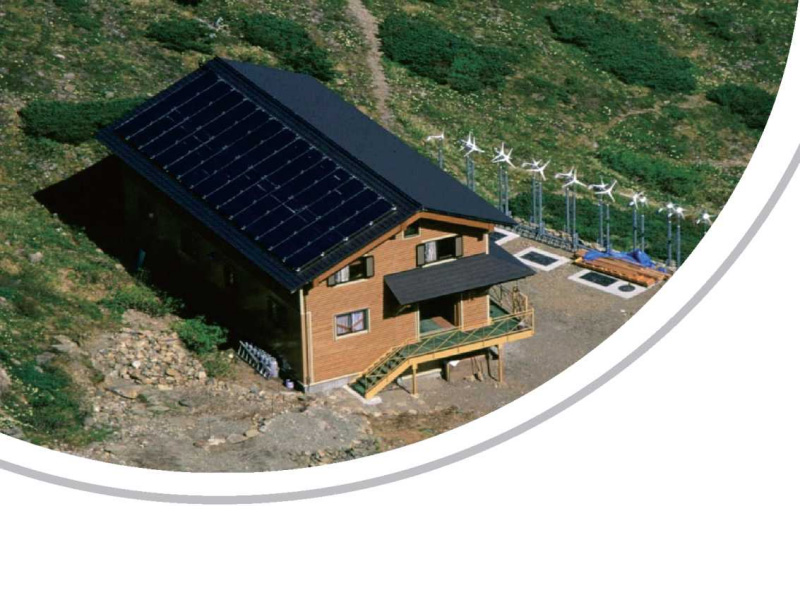

·Wind-solar hybrid system stable and reliable
·Cost-effective
·Flexible deployment
·Multiple application range
·Low maintenance cost
·High system integration lerel, small land area
Application
·Scientific research demonstration
·Communication base station
·Household power supply
·Hydrological monitoring
·Forest fire prevention
·Frontier guard post
·Island power supply
System Parameters
|
Solar panel power |
200W |
250W |
250W |
|
Number of solar panels |
2 PCS |
4 PCS |
6 PCS |
|
Horizontal axis wind turbine |
1KW |
2KW |
3KW |
|
Photovoltaic DC cable |
1 SET |
||
|
MC4 connector |
1 SET |
||
|
Wind and solar hybrid controller |
1KW |
2KW |
3KW |
|
Lithium battery/Lead-acid battery(Gel) |
24V |
48V |
|
|
Battery capacity |
200Ah |
200Ah |
300Ah |
|
Inverter AC input side voltage |
170-275V |
||
|
Inverter AC input side frequency |
45-65Hz |
||
|
Inverter off-grid rated output power |
1KW |
2KW |
3KW |
|
Maximum output apparent power on off-grid side |
1.2KVA,30S |
2. 4KVA, 30S |
3. 6KVA, 30S |
|
Rated output voltage on off-grid side |
1/N/PE, 220V |
||
|
Rated output frequency on off-grid side |
50Hz |
||
|
Switching time |
<10ms |
||
|
Working temperature |
0 ~+40°C |
||
|
Cooling method |
Natural cooling |
||
|
AC output copper core cable |
1 SET |
||
|
Distribution box |
1 SET |
||
|
Auxiliary material |
1 SET |
||
|
Photovoltaic mounting type |
Aluminum /Carbon steel mounting（one set） |
||
Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5°~ 45° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
