The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof.
With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.
Item NO.:
SF-FLM-TGW01Payment:
T/TPrice:
$0.079/WattProduct Origin:
Xiamen, ChinaShipping Port:
Xiamen,ChinaLead Time:
within 20 working days

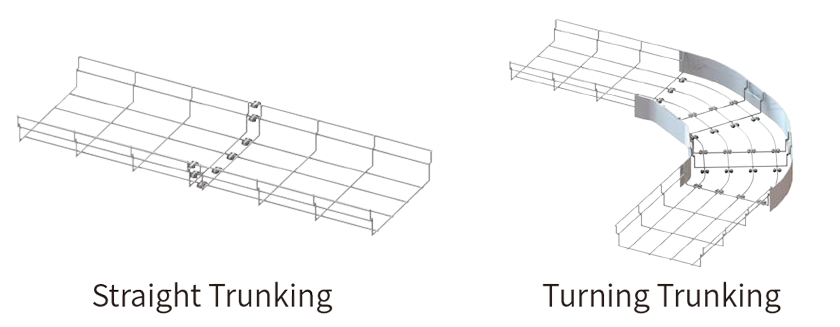

Types of Trunkings
|
Technical Details |
|
|
Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. |
|
|
Installation |
Water Surface |
|
Surface Wave Height |
≤0.5m |
|
Surface Flow Rate |
≤0.5m/s |
|
Wind Load |
≤36m/s |
|
Snow Load |
≤0.45kn/m² |
|
Tilt Angle |
0~25° |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017 |
|
Material |
HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |

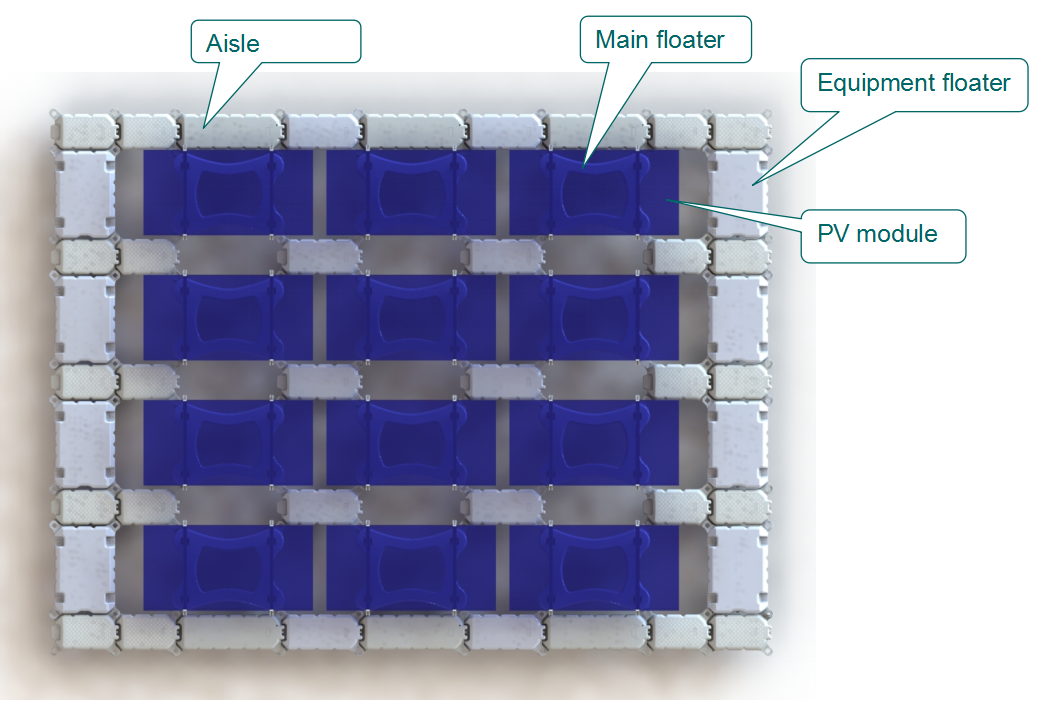

1. Convenient maintenance: there is a row of floating bodies connecteing each row of modules, which can form a row of maintenance walkways for easy maintenance.
2. Ventilation and heat dissipation: there is enough space between each row of modules for ventilation and heat dissipation, which can prevent modules from overheating under high temperature conditions.
3. Small wind load pressure: it's arranged at intervals to reduce the wind load generated by the wind on the array.

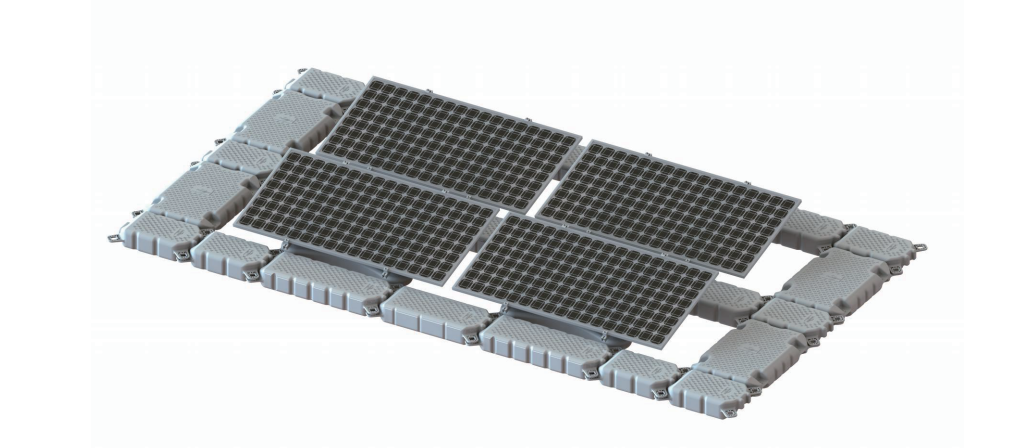

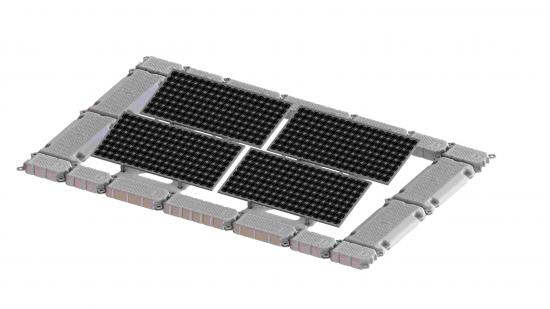

SolFirsTech-FLM-TGW01 is very suitable under normal circumstances, especially when the water area is sufficient, the wind load is large, the climate temperature is high, etc..
The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof.
With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.
The floating products developed by SolFirsTech have the following advantages according to market development:
1. Save land resources, have less impact on the water ecological environment.
2. The covering of pv modules can reduce evaporation and algae reproduction.
3. Convenient operation and maintenance, the photovoltaic power station is built on the water, which can reduce the pollution of dust to the components and facilitate the cleaning of the components.
4. Save cost.
5. Recyclable materials, easy to disassemble and assemble.
6. No pollution to water sources, food-grade compatible drinking water and fresh natural water resources.

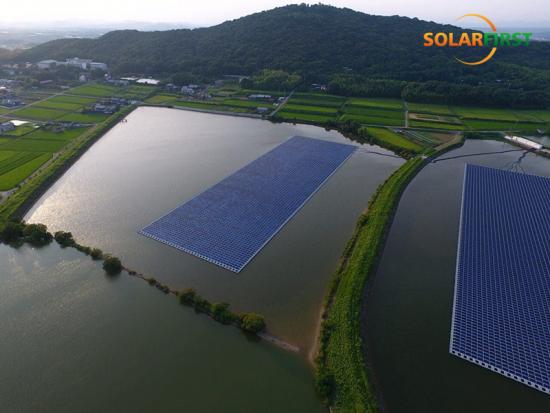

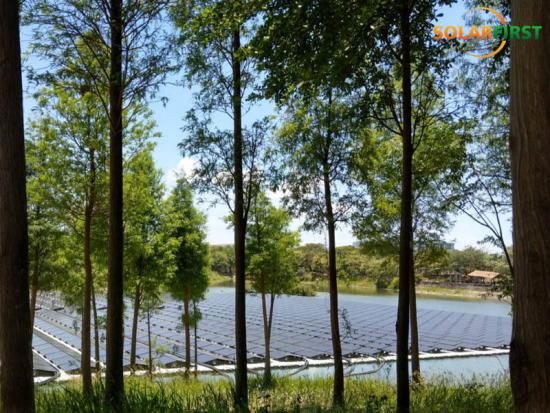

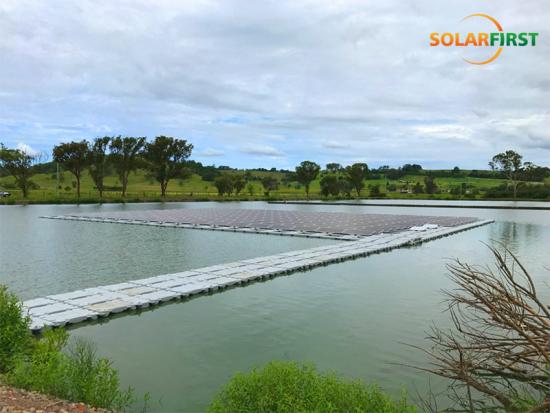

Project Reference
This series of products are mounting solutions for installing solar photovoltaic modules, inverters, combiner boxes, tranSolFirsTechormers, cables on water, such as dams, lakes, ponds, reservoirs, and coal mining subsidence areas.

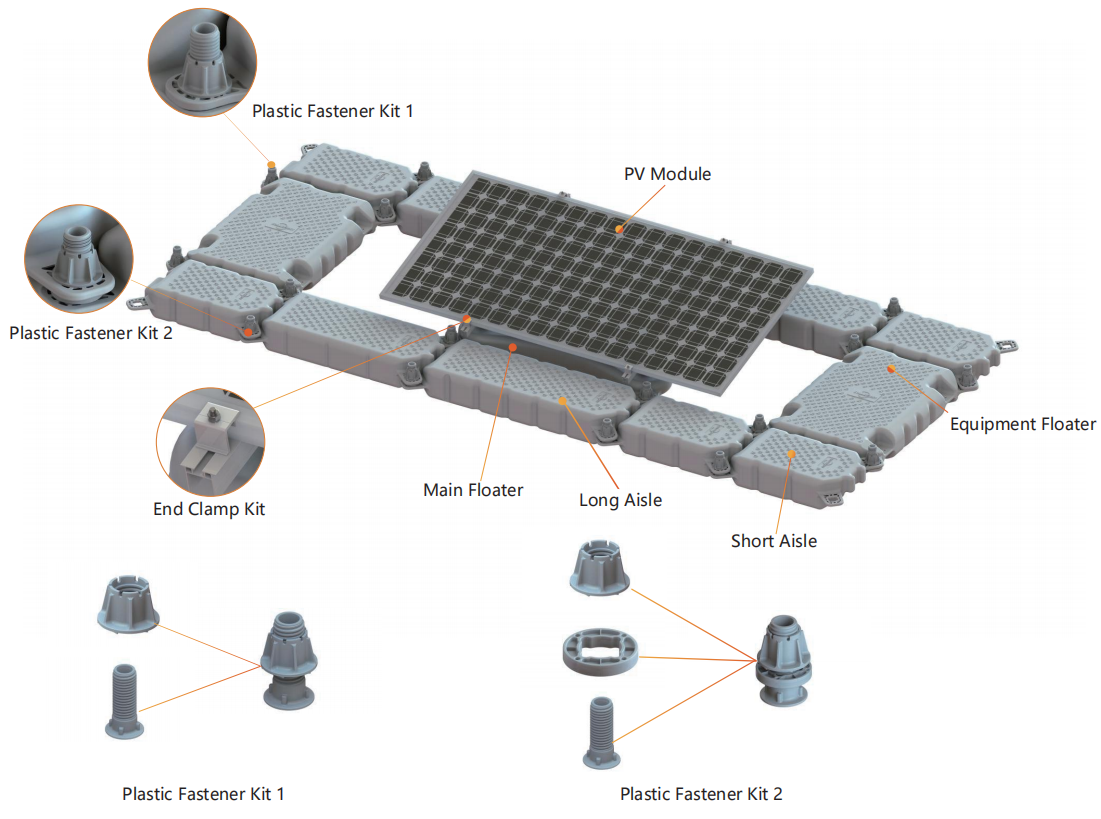

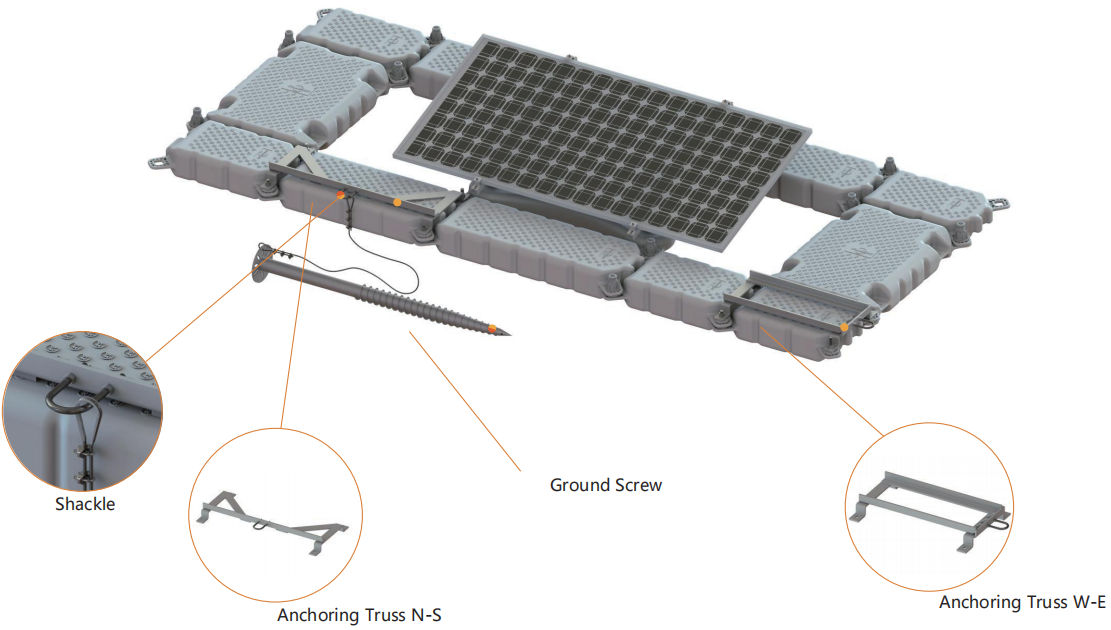

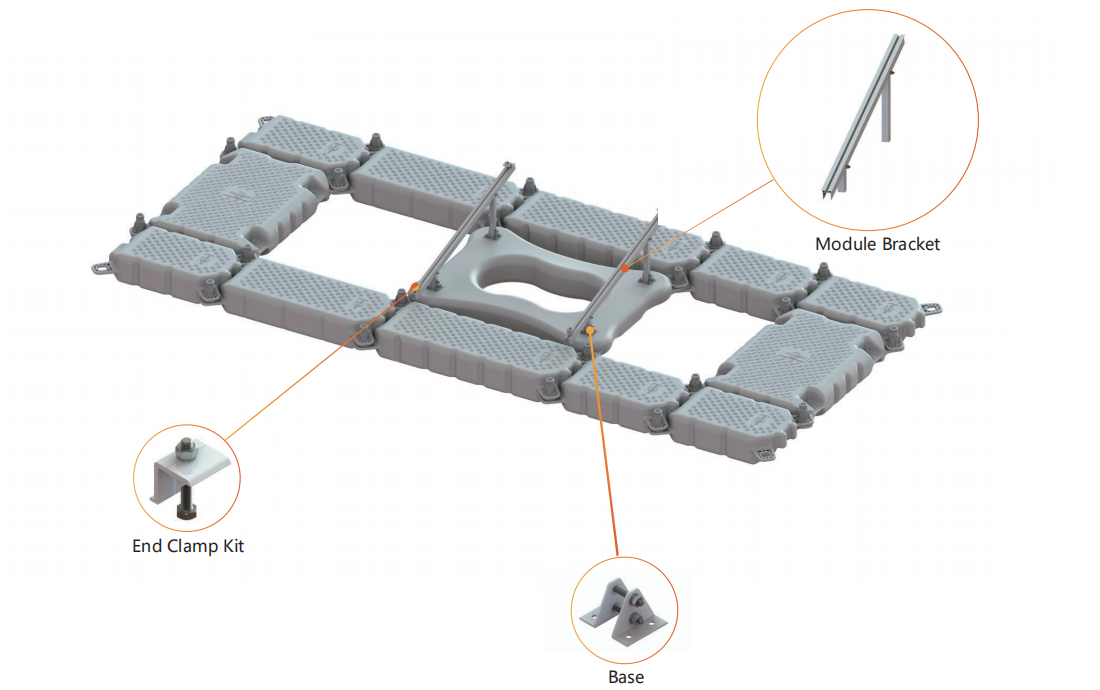

Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
