This series of products are mounting solutions for installing solar photovoltaic modules, inverters, combiner boxes, tranSolFirsTechormers, cables on water, such as dams, lakes, ponds, reservoirs, and coal mining subsidence areas.
Item NO.:
SF-FLM-TGW02Payment:
T/TProduct Origin:
ChinaColor:
NormalShipping Port:
Xiamen,ChinaLead Time:
within 20 working days

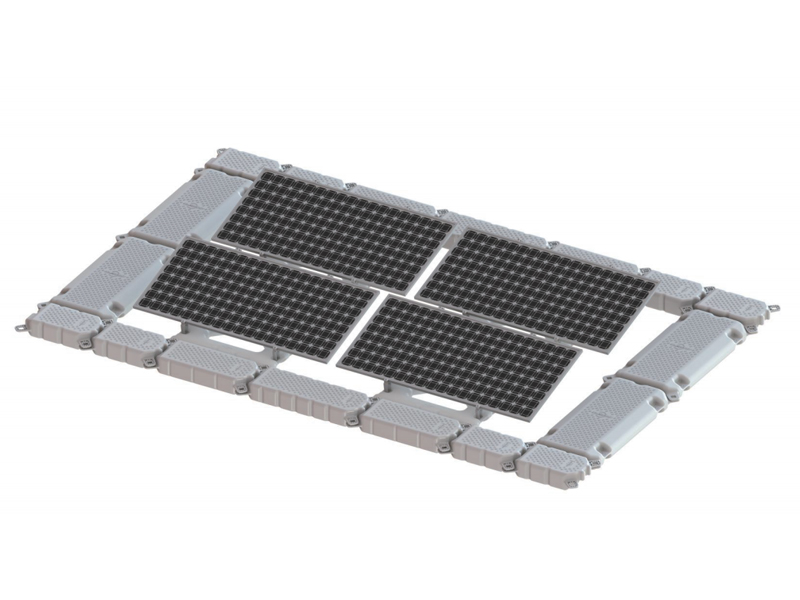

Floating Mounting System

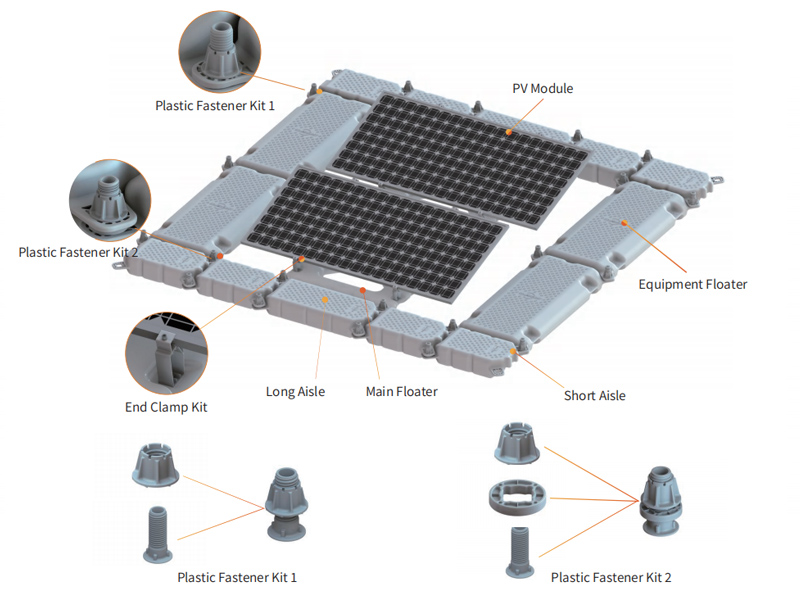

Structure

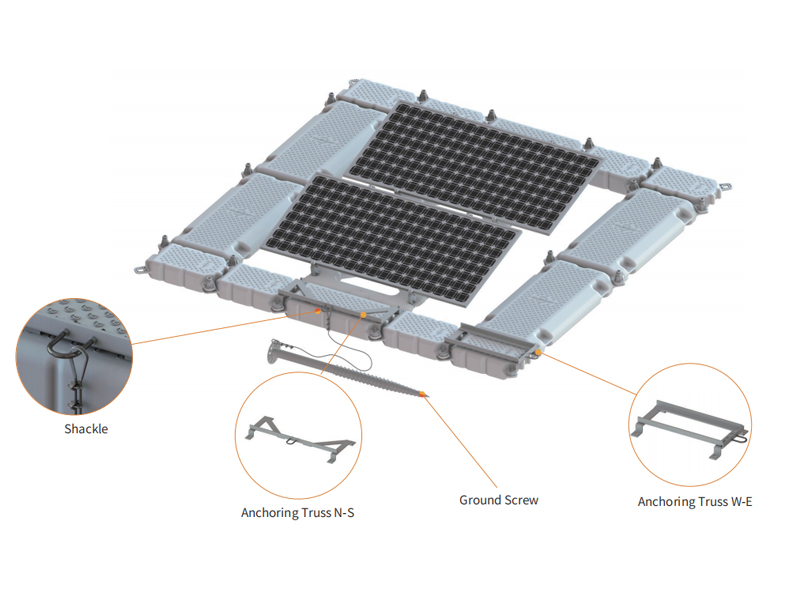

Anchoring System

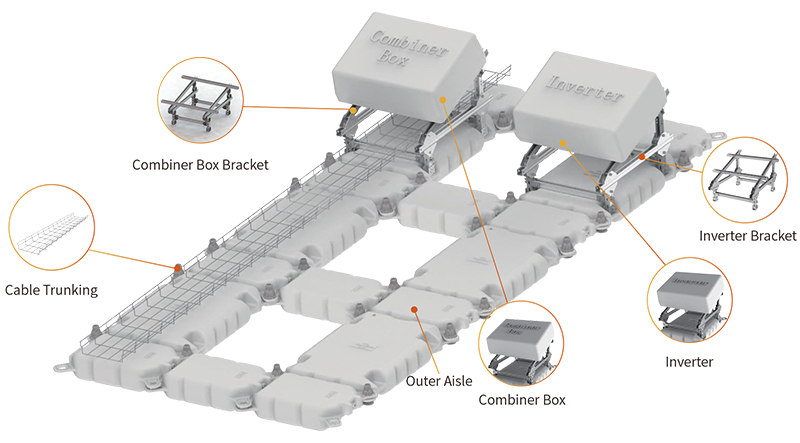

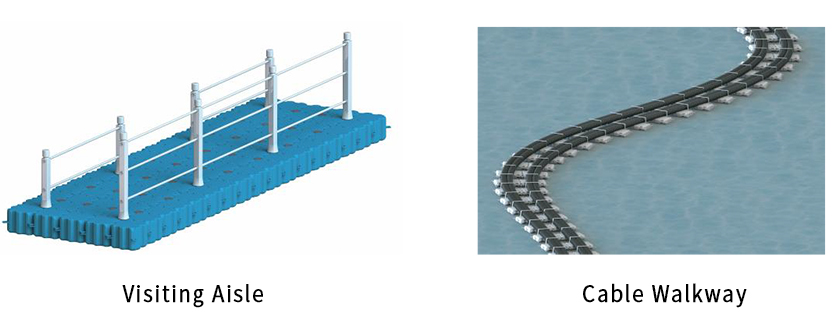

Combiner Box Bracket, Cable Trunking, Aisle

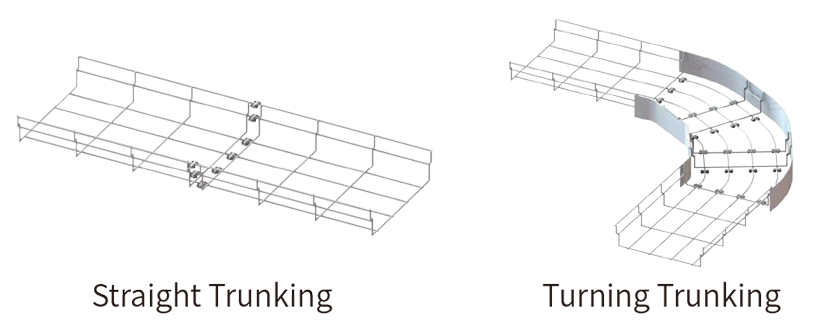

Types of Trunkings
|
Technical Details |
|
|
Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. |
|
|
Installation |
Water Surface |
|
Surface Wave Height |
≤0.5m |
|
Surface Flow Rate |
≤0.5m/s |
|
Wind Load |
≤36m/s |
|
Snow Load |
≤0.45kn/m² |
|
Tilt Angle |
0~25° |
|
Standards |
GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 |
|
Material |
HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Features:
1. Easy installation: each row of modules can be connected into multiple rows (2 rows to 5 rows), which is convenient for installation.
2. Lower price: due to the characteristics of the continuous row, the amount of floating bodies is reduced, and the cost is accordingly reduced.
SolFirsTech-FLM-TGW02 is recommended to be installed under the conditions of limited water area, small wind load, and appropriate climate environment to save costs.
Advantages
The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof.
With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.
The floating products developed by SolFirsTech have the following advantages according to market development:
1. Save land resources, have less impact on the water ecological environment.
2. The covering of pv modules can reduce evaporation and algae reproduction.
3. Convenient operation and maintenance, the photovoltaic power station is built on the water, which can reduce the pollution of dust to the components and facilitate the cleaning of the components.
4. Save cost.
5. Recyclable materials, easy to disassemble and assemble.
6. No pollution to water sources, food-grade compatible drinking water and fresh natural water resources.

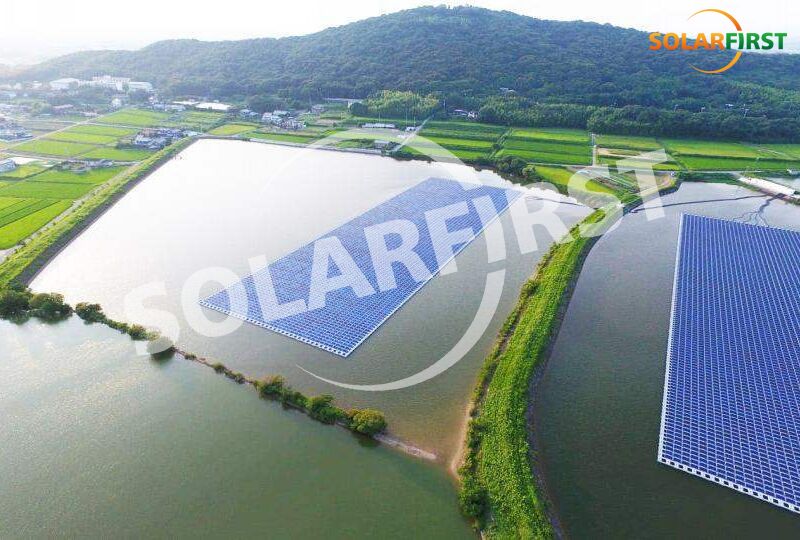

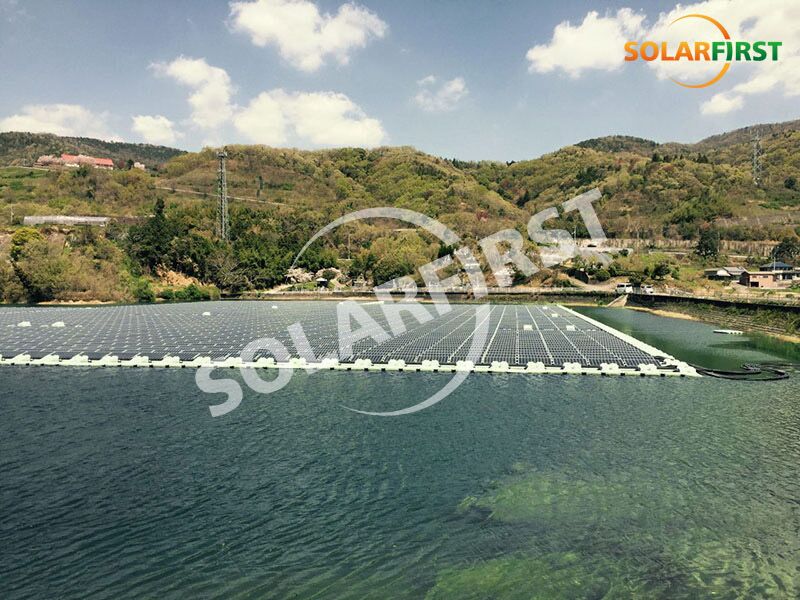

Project Reference
The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof. With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Adjustable Triangle Solar Flat Roof Mounting System is designed with great flexibility both for the residential and commercial roof solar system. It is small and light weight to the roof sheet.
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
SolFirsTech Aluminum L Feet used in metal roof solar mounting system. we can provide free design and sample to test.
SolFirsTech aluminum solar carport is made of high-strength aluminum alloy to meet customer's demand for safety installation, efficiency and aesthetics. To maximize the use of space, the carport bracket utilizes a special structural design, which allows to park two or four cars in each unit.
Flashing on Roof Technical Details Design Description: Apply the flashing to prevent water leakage effectively. Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Steps Accessories Technical Details Installation Ground Foundation Screw Pile / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Technical Details Design Description: This solution offers fast installation with minimum components. Its structure is light with high strength and good flexibility. Installation Ground / Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m2 Tilt Angle 10°, 15°, 20° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 / Hot Dip Gavanized Steel Warranty 10 Years Warranty
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Characteristics ·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving ·Adopt intelligent power regulation technology ·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving ·The detachable light pole is easy to install and transport Application ·Garden ·Plaza ·Residential area System Parameters Solar panel power 48W±15% Battery Type Lead-acid batteries Battery capacity I12V/80Ah Total power of light source 21W Main light color temperature 3000K 〜6000K Applicable temperature range 20°C 〜55°C Height of the whole lamp 4. 3m Windproof strength 27m/s (Wind grade 10) Rainy days 5~7 Days
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
