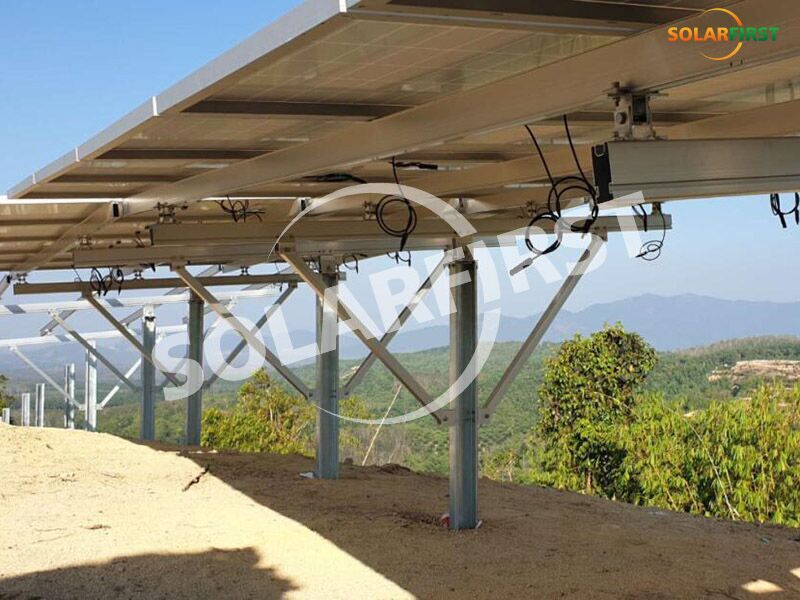

SolFirsTech RAMMING PILE GROUND MOUNT (SLOPE AREA)

Solar Panel Single Pole Ground Mounting System

Single Pole Ground Mounting system is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.

SolFirsTech RAMMING PILE GROUND MOUNT

SolFirsTech RAMMING PILE GROUND MOUNT

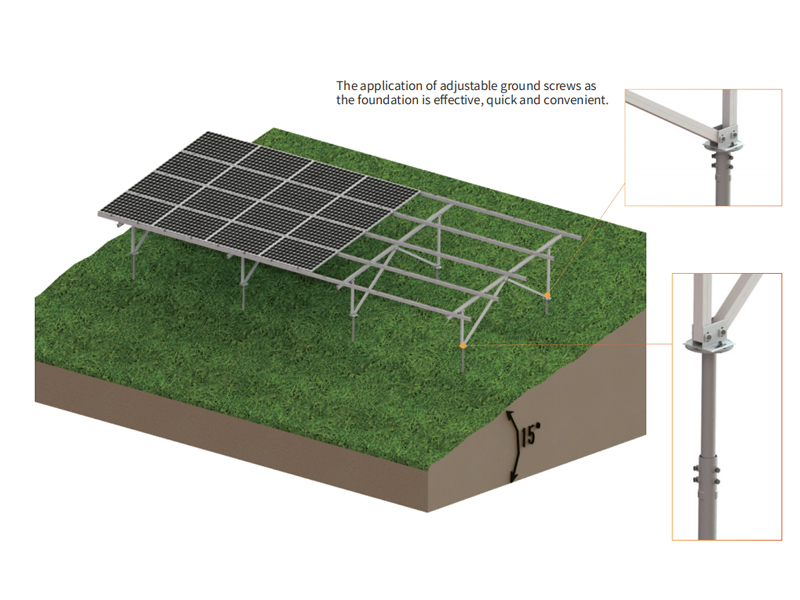

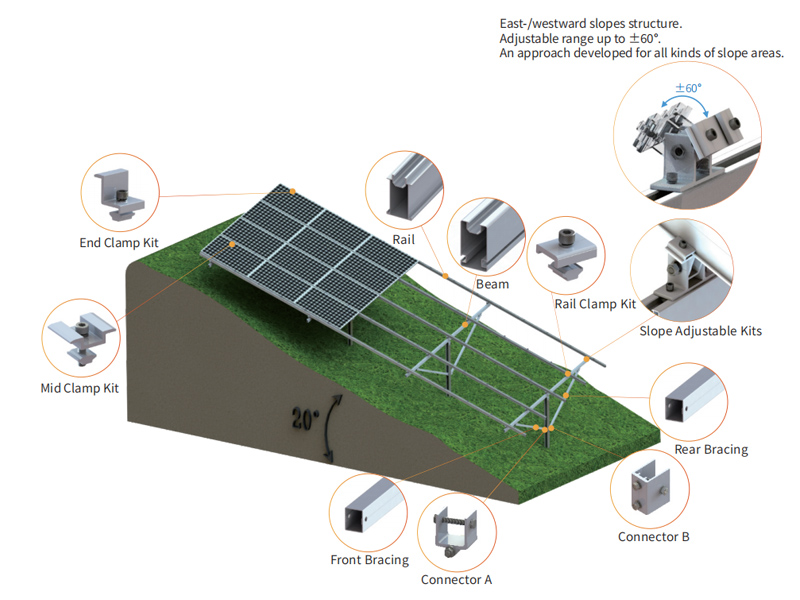

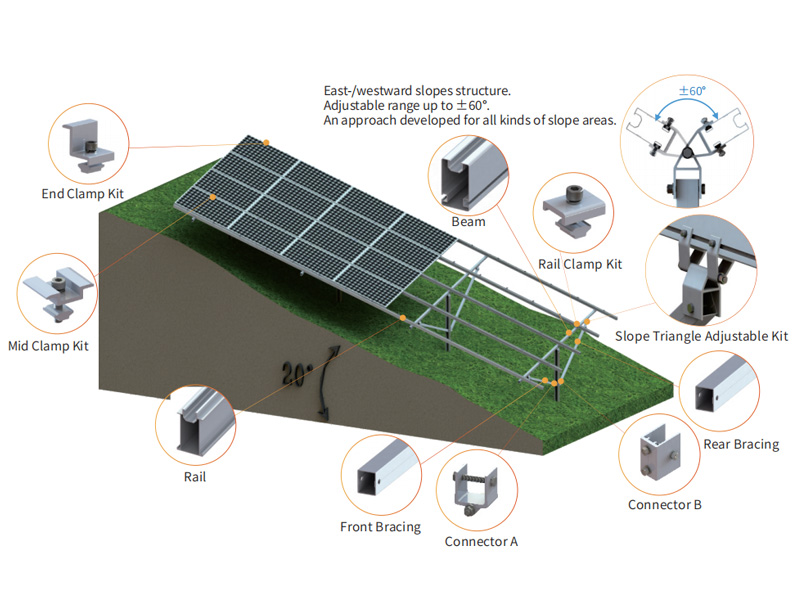

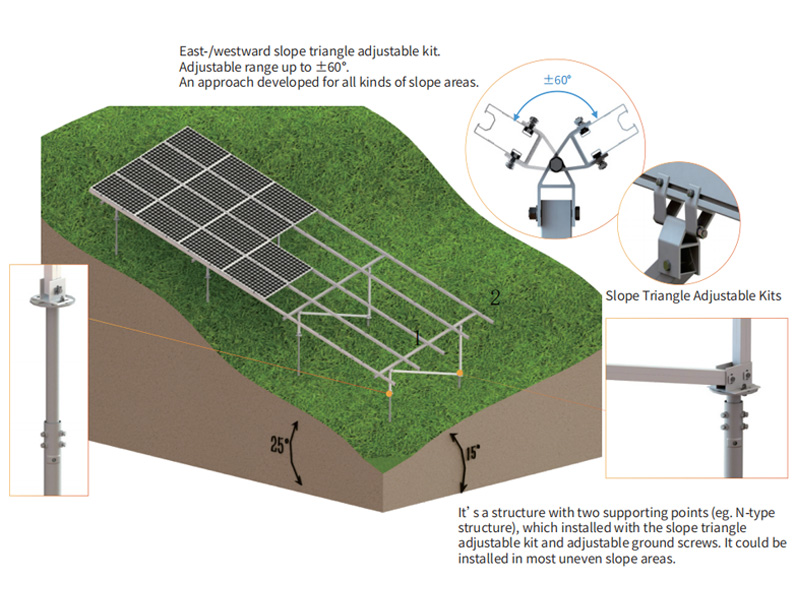

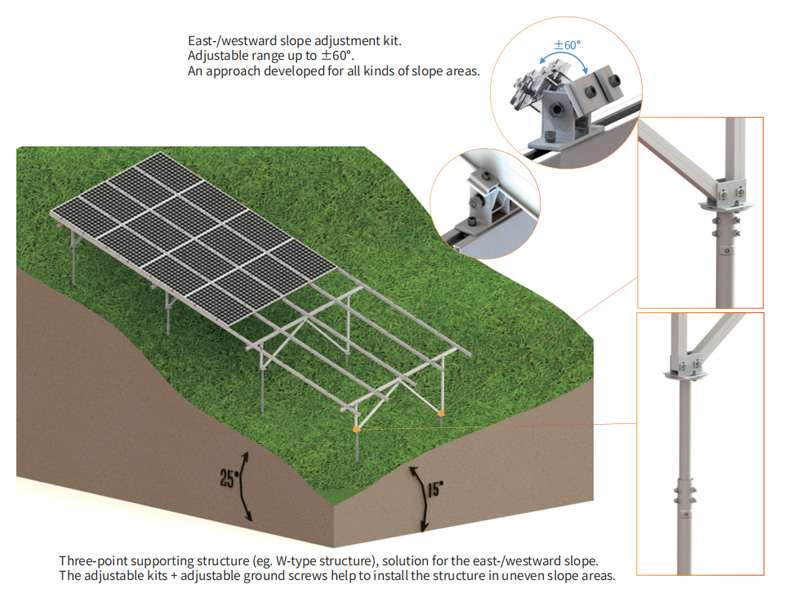

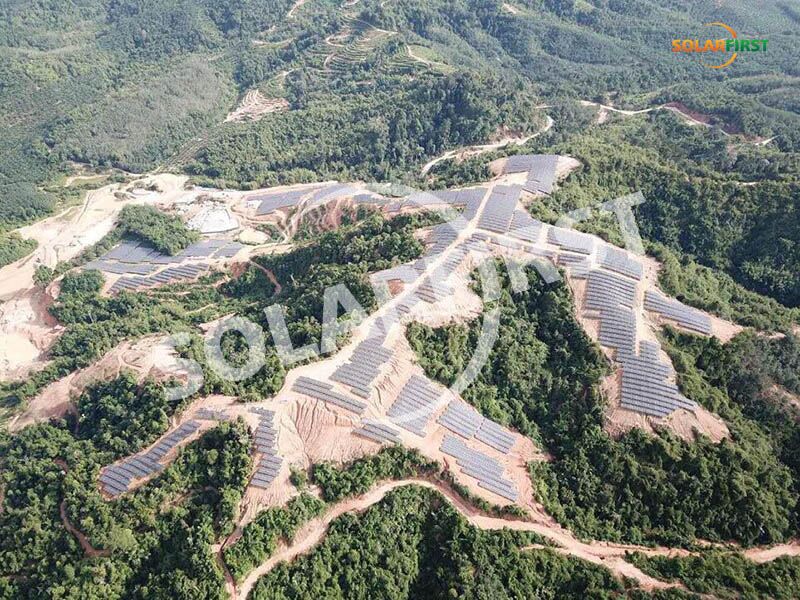

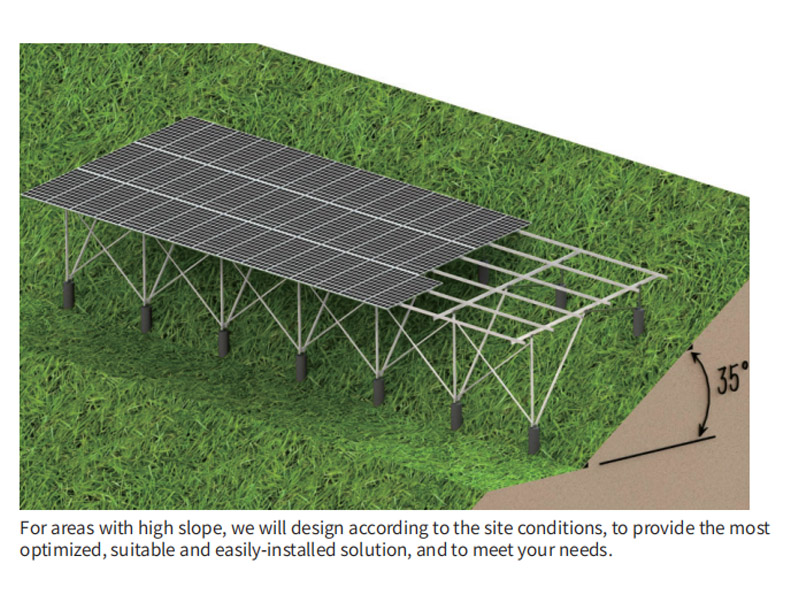

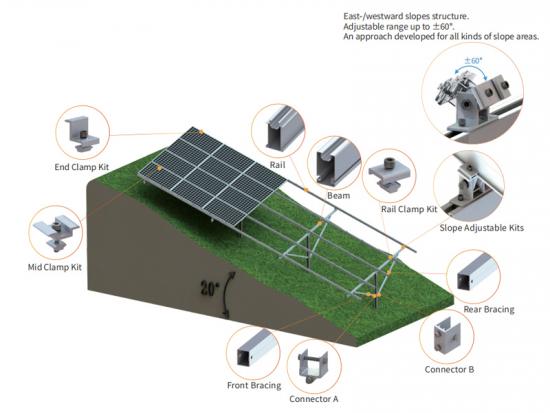

Installation Steps Available Types of Columns Technical Details Design Description: especially suitable for hillsides and uneven ground areas. Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m2 Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 Material Anodized AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty   Project Reference

Grid-connected & Off-grid Hybrid System

Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants   Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters   Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）

SolFirsTech ACCESSORIES

Ground Screw Apply carbon steel Q235 with HDG coating > 80μm, excellent in corrosion resistance. Custom-made solutions are available. DRAWING

SolFirsTech AGRICULTURAL SOLAR MOUNT

Installation Steps Technical Details Design Description: This solution allows solar panels to generate power from sunlight, while its lower structure provides a suitable growing environment for crops, edible fungi and livestock. Installation  Ground Foundation  Ground Screw / Concrete Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty Project Reference

SolFirsTech ALUMINUM SOLAR CARPORT

SolFirsTech aluminum solar carport is made of high-strength aluminum alloy to meet customer's demand for safety installation, efficiency and aesthetics. To maximize the use of space, the carport bracket utilizes a special structural design, which allows to park two or four cars in each unit.

SolFirsTech Single Layer Flexible Mounting Structure

Technical Details Installation  Ground Foundation  PHC/Cast-in-place Pile Modules Layout  Single Row in Portrait Single span  ≤20m Wind Load  0.45KN/㎡ (Adjustable according to the project) Snow Load  0.15KN/㎡ (Adjustable according to the project) Tilt Angle  ≤30° Standards  GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material  Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty  10 Years Warranty

CdTe Thin Film Solar Module

Solar Mounting System L Feet

SolFirsTech Aluminum L Feet used in metal roof solar mounting system. we can provide free design and sample to test.

Portable PV System

Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking   Application Outdoor DC power supply places   System Parameters

Concrete Flat Roof Solar Mounting System Ballasted Roof Mount

Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
