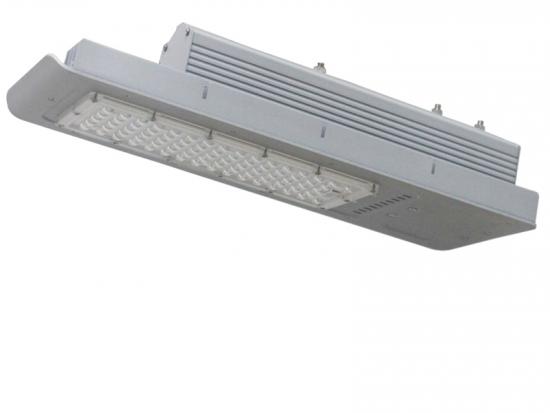

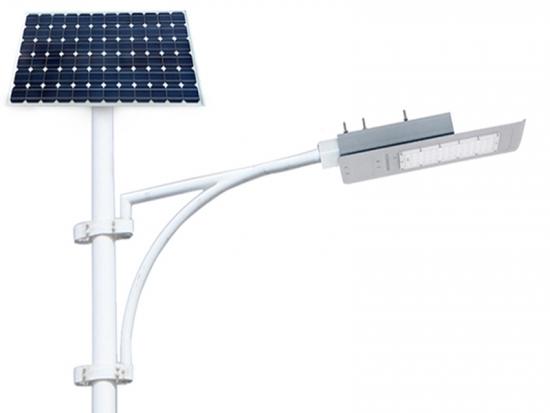

LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.
Item NO.:
SF-SL-60WPayment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
ChinaShipping Port:
Xiamen,ChinaLead Time:
20-30 working daysLED solar street light

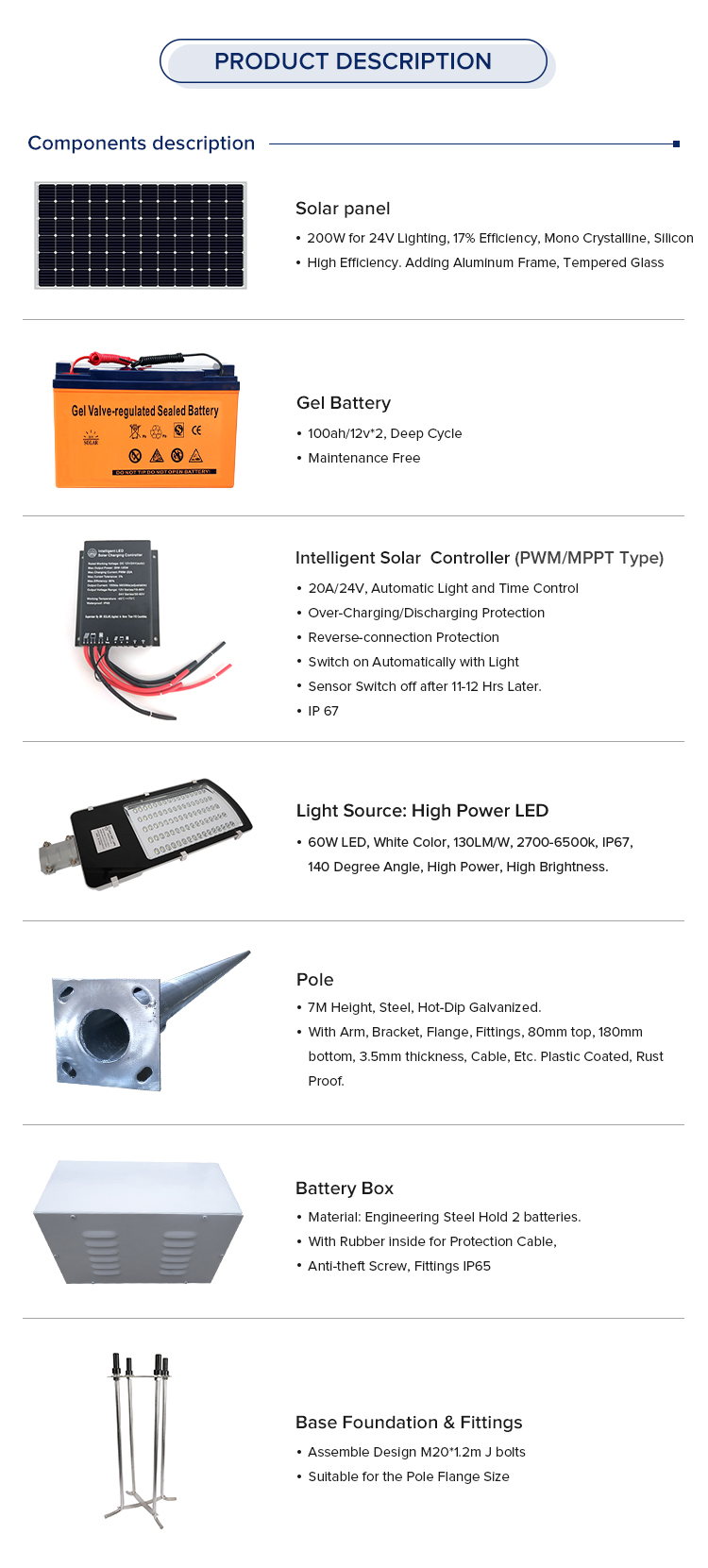

Product Description
Advantages
| Led solar street light Specifications | |||||||||||
| Part NO | BST-STL-20W-S002 | BST-STL-30W-S02 | BST-STL-60W-S02 | BST-STL-80W-S02 | BST-STL-100W-S02 | BST-STL-120W-S02 | |||||
| Power | 20W | 30W | 60W | 80W | 100W | 120W | |||||
| Size(mm) | L366*W135*H85 | L366*W135*H89 | L431*W160*H89 | L431*W160*H89 | L632*W215*H90 | L632*W215*H90 | |||||
| Luminous Flux | 2200-2400 | 3300-3600 | 6600-7200 | 8800-9600 | 11000-12000 | 13200-14400 | |||||
| Light distribution | 140*70 | ||||||||||
| CCT | 2700-6500K | ||||||||||
|
Color rendering index(CRI) |
Ra>80 | ||||||||||
| Light efficiency | 110-120lm/W | ||||||||||
| LED chip | LUMILEDS LED chips | ||||||||||

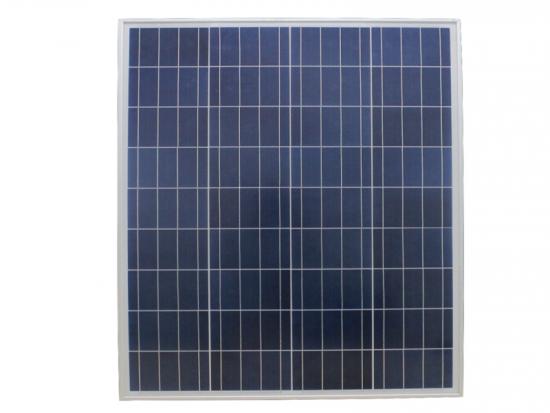

| Solar Module | 80W | 80W | 100W | 100W | 150W | 180W | |||||
| Solar panel life | 25 years | ||||||||||
| Lithium iron phosphate battery | 12V 65AH | 12V 100AH | 12V 100AH | 12V 120AH | 12V 150AH | 12V 200AH | |||||
| Housing color | Silvery grey | ||||||||||
| I Prate | IP65 | ||||||||||
| Housing material | Excellent Aluminum +PC lens | ||||||||||
| Working temperature | -20°C ~ +50°C | ||||||||||
| LED Life span | 50000 hours | ||||||||||
| warranty | 5years | ||||||||||
Product Dtetails
Applications
Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.
Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.
Wind and Solar two charging mode Solar Street Light
All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.
All in one Waterproof Solar Street LED Light,all-in-one design, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.
Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit
Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time, clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection) Application ·Home ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V 48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set 1 100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
SolFirsTech aluminum solar carport is made of high-strength aluminum alloy to meet customer's demand for safety installation, efficiency and aesthetics. To maximize the use of space, the carport bracket utilizes a special structural design, which allows to park two or four cars in each unit.
Multi-Row Type Structure Multi-row module installation design may increase land utilization rate, improve power generation efficiency, and raise economic benefits. Recommended tilt angle: Less than 15° Recommended environment: High snow load and wind load. l-Type Structure The structure is fixed by two open posts. It is stable, and convenient in installation. Recommend ed environment: Low snow and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
SolFirsTechPVROOF is a series of aluminum waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic， an eco- friendly substitution to the traditional canopy.
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
